2.4/5 GHz Indoor/Outdoor Antenna

ANT2206 Dual-Band 6dBi Directional Indoor Antenna

Build a Wholesome WLAN Infrastructure with ZyXEL Selected Accessories

When building a wireless LAN infrastructure, the IT staff should consider several factors influencing transmission efficiency, such as different facility sizes, building materials and interior divisions. To address this concern, a comprehensive WLAN solution for wireless LAN deployments can be critical.

To facilitate the installation process, ZyXEL offers a complete range of 2.4 GHz and 5 GHz antennas, cables and other accessories for Access Points (APs) to enable customized wireless deployments for almost any installation types.

The ZyXEL antennas are available in various space, directionality, gain and range capabilities in different form factors. With appropriately coupled antennas and APs, businesses will enjoy prefect WLAN environments with superior coverage, better reliability and higher data rates in all kinds of facilities. In addition, the ZyXEL low-loss cables can be used to extend the distance between any ZyXEL 2.4 GHz and 5 GHz AP and the antenna through N-plug or RP-SMA connectors.
This page is to help our customers with the selection of suitable antennas and related accessories for their deployment.

Specifications

Model	ANT2206
Product name	Dual-Band 6dBi Directional Indoor Antenna

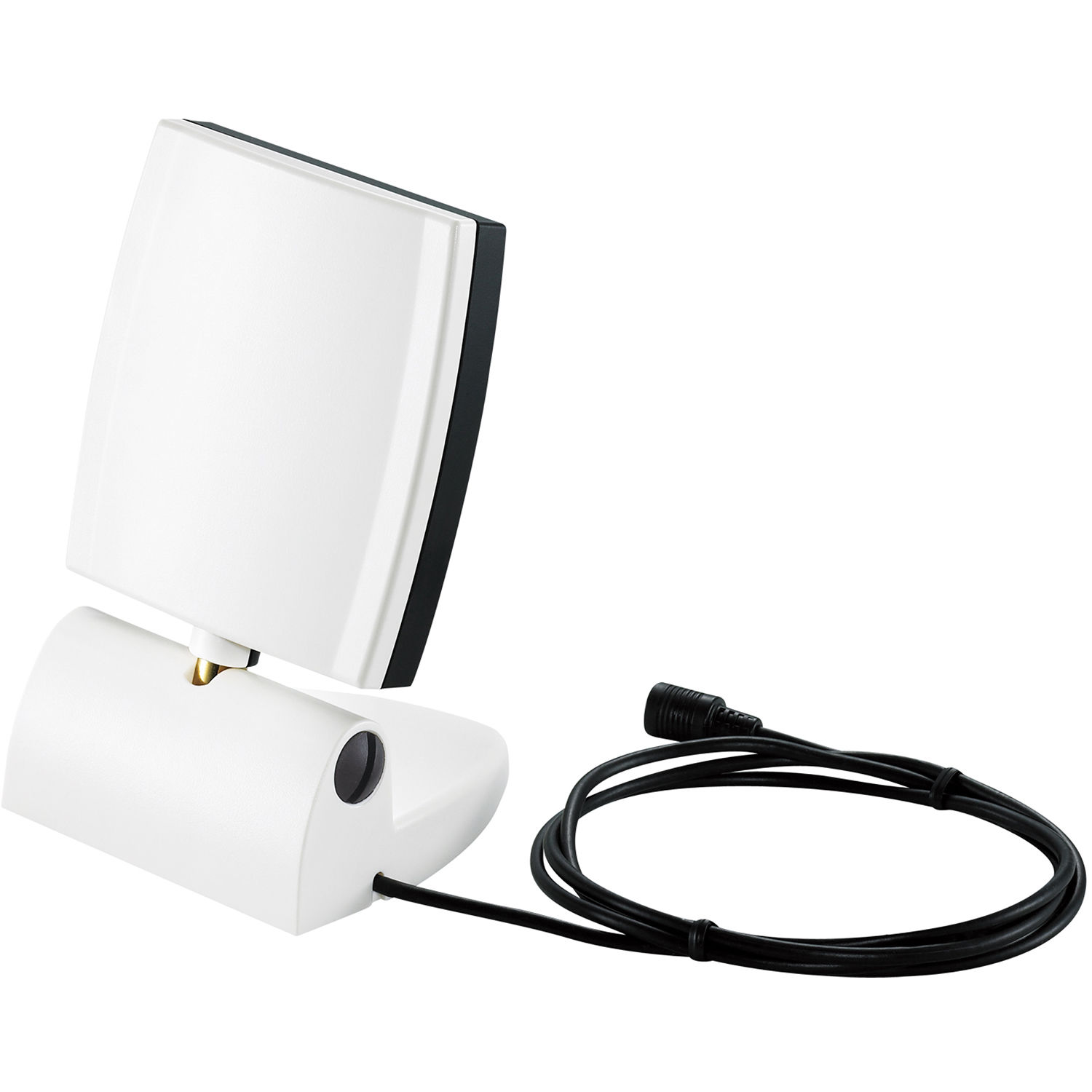

Product photo
Space	Indoor
Frequency band (MHz)	2400~2500	4900~5875
Gain	6 dBi	8 dBi
VSWR	2.0:1 Max.	2.0:1 Max.
Polarization	Linear, vertical	Linear, vertical
HPBW/Horizontal	65°	50°
HPBW/Vertical	75°	50°
Front to back Ratio	12 dB
Impedance	50 Ω
Connector	RP SMA plug
Survival wind speed	–
Temperature	-10°C to 55°C/14°F to 131°F
Humidity	95% at 55°C (131°F)
Radome color	White, Black
Radome material	ABS, UV resist
Dimensions (WxDxH)(mm/in.)	76 x 86 x 118/2.99 x 3.39 x 4.65
Weight (g/lb.)	110/0.24
Accessory Kit	Screw Kit Quick Installation Guide
