2.4/5 GHz Indoor/Outdoor Antenna
ANT2105 Dual-Band 5dBi Omni-Directional Outdoor Antenna
Build a Wholesome WLAN Infrastructure with ZyXEL Selected Accessories
When building a wireless LAN infrastructure, the IT staff should consider several factors influencing transmission efficiency, such as different facility sizes, building materials and interior divisions. To address this concern, a comprehensive WLAN solution for wireless LAN deployments can be critical.
To facilitate the installation process, ZyXEL offers a complete range of 2.4 GHz and 5 GHz antennas, cables and other accessories for Access Points (APs) to enable customized wireless deployments for almost any installation types.
The ZyXEL antennas are available in various space, directionality, gain and range capabilities in different form factors. With appropriately coupled antennas and APs, businesses will enjoy prefect WLAN environments with superior coverage, better reliability and higher data rates in all kinds of facilities. In addition, the ZyXEL low-loss cables can be used to extend the distance between any ZyXEL 2.4 GHz and 5 GHz AP and the antenna through N-plug or RP-SMA connectors.
This page is to help our customers with the selection of suitable antennas and related accessories for their deployment.
Specifications
| Model | ANT2105 | |
|---|---|---|
| Product name | Dual-Band 5dBi Omni-Directional Outdoor Antenna | |

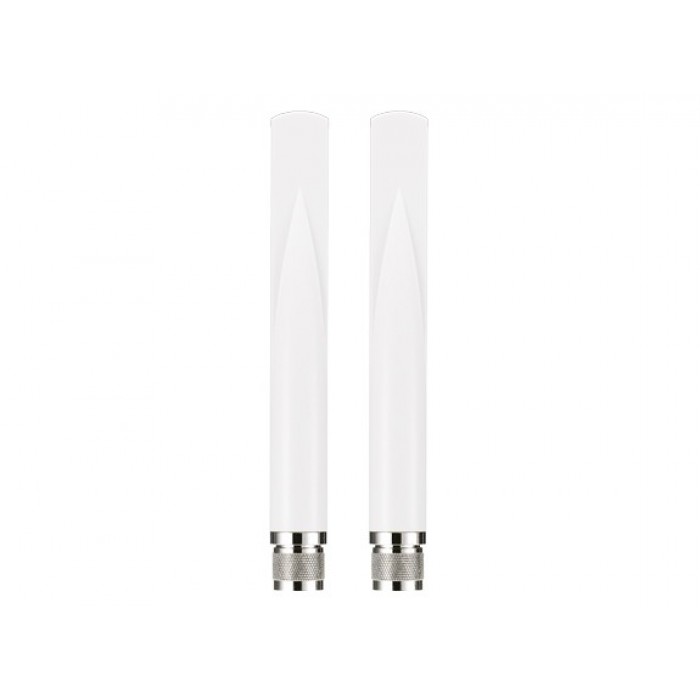

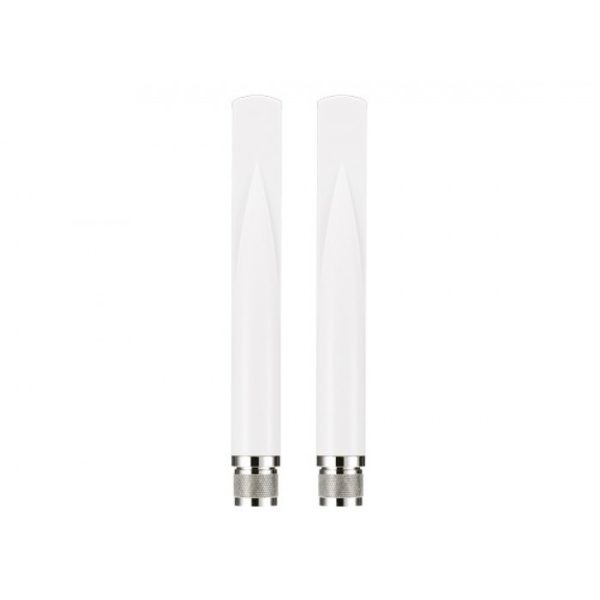

| Product photo |  |
|
| Space | Outdoor | |
| Frequency band (MHz) | 2400 ~ 2483 | 5150 ~ 5875 |
| Gain | 4.5 dBi | 7 dBi |
| VSWR | 2.0:1 Max. | 2.0:1 Max. |
| Polarization | Linear, vertical | Linear, vertical |
| HPBW/Horizontal | 360° | 360° |
| HPBW/Vertical | 30° | 15° |
| Front to back Ratio | – | |
| Impedance | 50 Ω | |
| Connector | N type plug | |
| Survival wind speed | 216 km/hr | |
| Temperature | -10°C to 70°C/14°F to 158°F | |
| Humidity | 95% at 55°C (131°F) | |
| Radome color | White | |
| Radome material | ABS | |
| Dimensions (WxDxH)(mm/in.) | f 22 x 183 | |
| Weight (g/lb.) | 70/0.15 | |
| Accessory Kit | – | |
