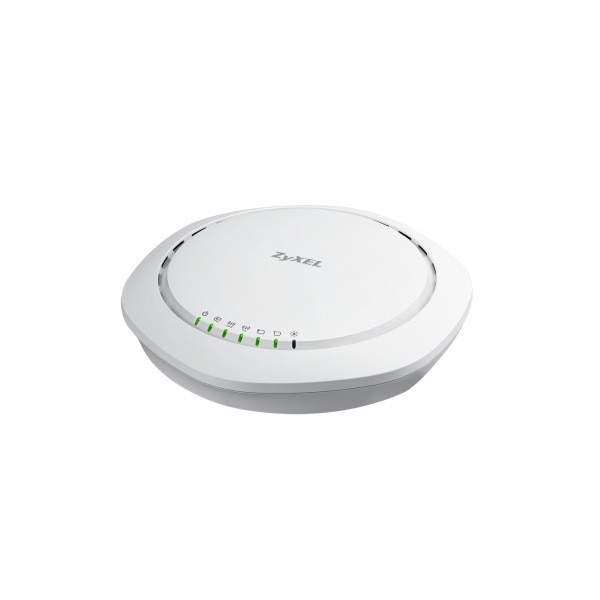

ZyXEL ZXL-WAC6502D-S Warranty Limited

Categories: Wireless, ZYXEL

Description
Reviews (0)

Model	WAC6503D-S	WAC6502D-S	WAC6502D-E
Product Name	802.11ac Dual Radio Smart Antenna 3×3 Access Point	802.11ac Dual Radio Smart Antenna 2×2 Access Point	802.11ac Dual Radio External antenna 2×2 Access Point

Main Design
Wireless frequency	2.4 and 5 GHz	2.4 and 5 GHz	2.4 and 5 GHz
Radio	2	2	2
RF Specifications
Frequency band	2.4 GHz (IEEE 802.11 b/g/n) USA (FCC): 2.412 to 2.462 GHz Europe (ETSI): 2.412 to 2.472 GHz Taiwan (TW): 2.412 to 2.462 GHz 5 GHz (IEEE 802.11 a/n/ac) USA (FCC): 5.15 to 5.35 GHz; 5.725 to 5.850 GHz European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz Taiwan (TW): 5.25 to 5.35 GHz; 5.725 to 5.850 GHz
802.11n/ac premium features	3×3 Multiple-Input Multiple- Output (MIMO) with three spatial streams Maximal Ratio Combining (MRC) 20-, 40- and 80-MHz channels Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) Cyclic Delay Diversity (CSD) support Maximum Likehood Demodulation (MLD) support Low Density Parity Check (LDPC) support	2×2 Multiple-Input Multiple-Output (MIMO) with two spatial streams Maximal Ratio Combining (MRC) 20-, 40- and 80-MHz channels Packet aggregation: A-MPDU (Tx/Rx), A-MSDU (Tx/Rx) Cyclic Delay Diversity (CSD) support Maximum Likehood Demodulation (MLD) support Low Density Parity Check (LDPC) support
Number of antenna	6 embedded smart antenna	4 embedded smart antenna	4 external
Antenna gain	4 dBi @2.4 GHz 6 dBi @5 GHz	4 dBi @2.4 GHz 6 dBi @5 GHz	5 dBi @2.4 GHz 7 dBi @5 GHz
Support data rate	802.11a/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps 802.11n: up to 450 Mbps in MCS15 (40 MHz) 802.11ac: up to 1300 Mbps in MCS9 (80 MHz)	802.11a/g: 1, 2, 5.5, 6, 9, 11, 12, 18, 24, 36, 48, and 54 Mbps 802.11n: up to 300 Mbps in MCS15 (40 MHz) 802.11ac: up to 866 Mbps in MCS9 (80 MHz)
Receive sensitivity	Min. Rx sensitivity up to -102 dBm	Min. Rx sensitivity up to -100 dBm	Min. Rx sensitivity up to -100 dBm
Typical Transmit Output Power (Conducted)
FCC 11b/g	29	28	28
FCC 11g/n	29	28	28
FCC 11a	30	28	28
FCC 11n/a (ac)	30	28	28
EU 11b/g	15	14	14
EU 11g/n	15	14	14
EU 11a	23	22	22
EU 11n/a (ac)	23	22	22
Interfaces
Number of 10/100/1000M LAN	2	2	2
Console port	RJ-45 serial	RJ-45 serial	RJ-45 serial
PoE	Yes	Yes	Yes
PoE power draw	17.04 W	15.12 W	15.12 W
WLAN Features
WLAN maximum throughput	Up to 900 Mbps	Up to 600 Mbps	Up to 600 Mbps
*Mesh AP (By license)^1**	Yes	Yes	Yes
*Mesh AP for multiple SSID with VLAN (through tunnel mode)^1**	Yes	Yes	Yes
Wireless Security
WEP	Yes	Yes	Yes
WPA/WPA2-PSK	Yes	Yes	Yes
WPA/WPA2-Enterprise	Yes	Yes	Yes
WMM (Wi-Fi certified)	Yes	Yes	Yes
EAP types	EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST, EAP-AKA and EAP-SIM	EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST, EAP-AKA and EAP-SIM	EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-FAST, EAP-AKA and EAP-SIM
IEEE 802.1X	Yes	Yes	Yes
Number of SSID	16	16	16
*Web authentication^1**	Yes	Yes	Yes
MAC filtering	Yes	Yes	Yes
Layer-2 isolation	Yes	Yes	Yes
RADIUS authentication	Yes	Yes	Yes
*Microsoft AD authentication^1**	Yes	Yes	Yes
*LDAP authentication^1**	Yes	Yes	Yes
*MAC authentication^1**	Yes	Yes	Yes
*Rogue AP detection^1**	Yes	Yes	Yes
*Rogue AP containment^1**	Yes	Yes	Yes
Network
IPv6 host	Yes	Yes	Yes
VLANs	Yes	Yes	Yes
DHCP client	Yes	Yes	Yes
QoS (PG)
WMM	Yes	Yes	Yes
WMM power save	Yes	Yes	Yes
DiffServ marking	Yes	Yes	Yes
Management
*ZON utility^2**	Discovery of Zyxel switches, APs and gateways^*3 Centralized and batch configurations IP configuration IP renew Device reboot Device locating Web GUI access Firmware upgrade Password configuration One-click quick association with Zyxel AP Configurator (ZAC)
Smart connect	Discover neighboring devices One-click remote management access to the neighboring Zyxel devices
*Zyxel AP configurator^2**	Batch AP configuration Batch AP firmware upgrade Batch AP profile backup
Zyxel wireless optimizer	Wi-Fi AP Planning Wi-Fi coverage detection Wireless health management
Standalone AP mode	Yes	Yes	Yes
Managed AP mode	Yes	Yes	Yes
CLI	Yes	Yes	Yes
Web UI	Yes	Yes	Yes
SNMP	v1/2c/3	v1/2c/3	v1/2c/3
Others
Plenum rating	Yes	Yes	Yes
Kensington lock support	Yes	Yes	Yes
Input power	DC input: 12 VDC 2 A; PoE: 802.3at compliant (Power adapter is sold separately
MTBF (hr)	1,202,489	1,407,374	1,427,755
Standard Compliance
Ethernet	IEEE 802.3 IEEE 802.3u IEEE 802.11ab IEEE 802.3au IEEE 802.3az IEEE 802.3at	IEEE 802.3 IEEE 802.3u IEEE 802.11ab IEEE 802.3au IEEE 802.3az IEEE 802.3at	IEEE 802.3 IEEE 802.3u IEEE 802.11ab IEEE 802.3au IEEE 802.3az IEEE 802.3at
PoE	IEEE 802.3at^*4	IEEE 802.3at^*4	IEEE 802.3at^*4
WLAN	802.11b: DBPSK, DQPSK, CCK 802.11g: BPSK, QPSK, 16-QAM, 64-QAM 802.11a: BPSK, QPSK, 16-QAM, 64-QAM 802.11n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 64-QAM, 256-QAM
Certifications
Radio	FCC Part 15C, FCC Part 15E, ETSI EN 300 328, EN 301 893, LP0002
EMC	FCC Part 15B, EN 301 489-1, EN 301 489-17, EN55022, EN55024, EN61000-3-2/-3, EN60601-1-2, BSMI CNS13438
Safety	EN 60950-1, IEC 60950-1, BSMI CNS14336-1
Physical Specifications
Item Dimensions (WxDxH)(mm/in.)	236 x 227 x 62/ 9.28 x 8.95 x 2.43	236 x 227 x 62/ 9.28 x 8.95 x 2.43	236 x 227 x 62/ 9.28 x 8.95 x 2.43
Item Weight (g/lb.)	982/2.17	961/2.12	841/1.86
Packing Dimensions (WxDxH)(mm/in.)	308 x 323 x 127/ 12.13 x 12.72 x 5.00	308 x 323 x 127/ 12.13 x 12.72 x 5.00	308 x 323 x 127/ 12.13 x 12.72 x 5.00
Packing Weight (g/lb.)	1743/3.85	1722/3.81	1699/3.75
Included accessories	• Ceiling mount plate • Mounting screws	• Ceiling mount plate • Mounting screws	• External antenna • Ceiling mount plate • Mounting screws
Environmental Specifications
Operating temperature	0°C to 50°C/32°F to 122°F
Operating humidity	10% to 90% (non-condensing)
Storage temperature	-40°C to 70°C/-40°F to 158°F
Storage humidity	10% to 90% (non-condensing)
