| Hardware Specifications | |||
| Interfaces | 4 x LAN/DMZ, 1 x WAN, 1 x SFP | 4 x LAN/DMZ, 2 x WAN, 1 x SFP | 7 x GbE (Configurable) 1 x SFP |
| USB3.0 ports | 1 | 2 | 2 |
| Console port | Yes (RJ-45) | Yes (DB9) | Yes (DB9) |
| Rack-mountable | – | Yes | Yes |
| System Capacity & Performance*1 | |||
| SPI firewall throughput (Mbps)*2 | 800 | 2,000 | 2,600 |
| VPN throughput (Mbps)*3 | 150 | 500 | 1,000 |
| Max. TCP concurrent sessions*4 | 400,000 | 800,000 | 2,000,000 |
| Max. concurrent IPSec VPN tunnels*5 | 50 | 100 | 300 |
| Concurrent SSL VPN users (default/max.)*6 | 10/50 | 30/200 | 50/300 |
| VLAN interface | 8 | 16 | 64 |
| Concurrent device logins (default/max.)*6*7 | 64 | 200/300 | 500/800 |
| WLAN Management | |||
| Managed AP number (default/max.) *6 | 4/36 | 4/68 | 4/132 |
| Key Features | |||
| VPN | IKEv2, IPSec, SSL, L2TP/IPSec | IKEv2, IPSec, SSL, L2TP/IPSec | IKEv2, IPSec, SSL, L2TP/IPSec |
| SSL (HTTPS) inspection | – | Yes | Yes |
| Content filtering *6*8 | 1 year free | 1 year free | 1 year free |
| Geo Enforcer*6 | 1 year free | 1 year free | 1 year free |
| EZ Mode | Yes | – | – |
| Hotspot Management *6 | – | Yes | Yes |
| Ticket printer support*9 / Support Q’ty (max.) | – | Yes (SP350E) / 10 | Yes (SP350E) / 10 |
| Amazon VPC | Yes | Yes | Yes |
| Facebook Wi-Fi | Yes | Yes | Yes |
| Device HA Pro | – | Yes | Yes |
| Power Requirements | |||
| Power input | 12V DC, 2.0 A max. | 12V DC, 2.5A max. | 12V DC, 4.17A max. |
| Max. power consumption (watt) | 12 | 13.3 | 24.1 |
| Heat dissipation (BTU/hr) | 40.92 | 45.38 | 82.23 |
| Physical Specifications | |||
| Item | Dimensions (WxDxH)(mm/in.) 216 x 143 x 33/8.50 x 5.63 x 1.30 Weight (kg/lb.) 0.88/1.94 |
Dimensions (WxDxH)(mm/in.) 272 x 187 x 36/10.7 x 7.36 x 1.42 Weight (kg/lb.) 1.4/3.09 |
Dimensions (WxDxH)(mm/in.) 300 x188 x 44/16.93 x 7.4 x 1.73 Weight (kg/lb.) 1.65 / 3.64 |
| Packing | Dimensions (WxDxH)(mm/in.) 276 x 185 x 98/10.87 x 7.28 x 3.86 Weight (kg/lb.) 1.41/3.11 |
Dimensions (WxDxH)(mm/in.) 427 x 247x 73/16.81 x9.72 x 2.87 Weight (kg/lb.) 2.23 (W/O bracket) 2.42 (W/ bracket) |
Dimensions (WxDxH)(mm/in.) 351 x 152 x 245/13.82 x 5.98 x 9.65 Weight (kg/lb.) 2.83/6.24 |
| Included accessories |
|
|
|
| Environmental Specifications | |||
| Operating | Temperature 0°C to 40°C /32°F to 104°F Humidity 10% to 90%(non-condensing) |
Temperature 0°C to 40°C /32°F to 104°F Humidity 10% to 90%(non-condensing) |
Temperature 0°C to 40°C /32°F to 104°F Humidity 10% to 90%(non-condensing) |
| Storage | Temperature -30°C to 70°C (-22°F to 158°F) Humidity 10% to 90%(non-condensing) |
Temperature -30°C to 70°C (-22°F to 158°F) Humidity 10% to 90%(non-condensing) |
Temperature -30°C to 70°C (-22°F to 158°F) Humidity 10% to 90%(non-condensing) |
| MTBF (hr) | 44,000 | 529,688.2 | 529688.2 |
| Certifications | |||
| EMC | FCC Part 15 (Class B),IC, CE EMC (Class B),RCM,BSMI | FCC Part 15 (Class B),CE EMC (Class B),C-Tick (Class B),BSMI | FCC Part 15 (Class A),CE EMC (Class A),C-Tick (Class A),BSMI |
| Safety | BSMI, UL | LVD (EN60950-1), BSM | LVD (EN60950-1), BSMI |
|
Models
|
|||
|---|---|---|---|
| Hardware Specifications | |||
| Interfaces | |||
| USB3.0 ports | |||
| Console port | |||
| Rack-mountable | |||
| System Capacity & Performance*1 | |||
| SPI firewall throughput (Mbps)*2 | |||
| VPN throughput (Mbps)*3 | |||
| Max. TCP concurrent sessions*4 | |||
| Max. concurrent IPSec VPN tunnels*5 | |||
| Concurrent SSL VPN users (default/max.)*6 | |||
| VLAN interface | |||
| Concurrent device logins (default/max.)*6*7 | |||
| WLAN Management | |||
| Managed AP number (default/max.) *6 | |||
| Key Features | |||
| VPN | |||
| SSL (HTTPS) inspection | |||
| Content filtering *6*8 | |||
| Geo Enforcer*6 | |||
| EZ Mode | |||
| Hotspot Management *6 | |||
| Ticket printer support*9 / Support Q’ty (max.) | |||
| Amazon VPC | |||
| Facebook Wi-Fi | |||
| Device HA Pro | |||
| Power Requirements | |||
| Power input | |||
| Max. power consumption (watt) | |||
| Heat dissipation (BTU/hr) | |||
| Physical Specifications | |||
| Item | |||
| Packing | |||
| Included accessories | |||
| Environmental Specifications | |||
| Operating | |||
| Storage | |||
| MTBF (hr) | |||
| Certifications | |||
| EMC | |||
| Safety | |||
Note:
* This matrix with firmware ZLD4.30 or later.
- Actual performance may vary depending on network conditions and activated applications.
- Maximum throughput based on RFC 2544 (1,518-byte UDP packets).
- VPN throughput measured based on RFC 2544 (1,424-byte UDP packets).
- Maximum sessions measured using the industry standard IXIA IxLoad testing tool.
- Including Gateway-to-Gateway and Client-to-Gateway.
- With Zyxel service license to enable or extend the feature capacity.
- This is the recommend maximum number of concurrent logged-in devices.
- SafeSearch function in Content Filtering need to enable SSL inspection firstly and not for small business models.
- With Hotspot Management license support.
- ZyWALL VPN50 เป็นไปตามข้อกำหนด GDPR.

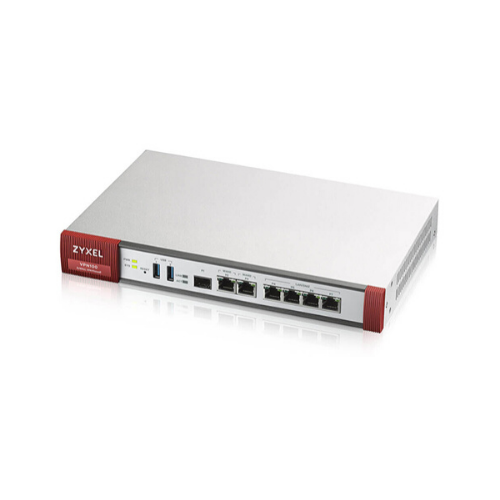

Be the first to review “ZyXEL ZXL-VPN100 SD-WAN/VPN Firewall Warranty Limited Lifetime”
