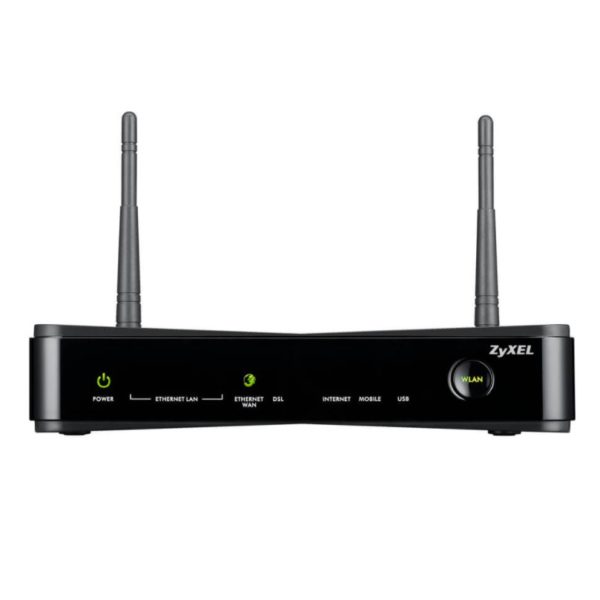

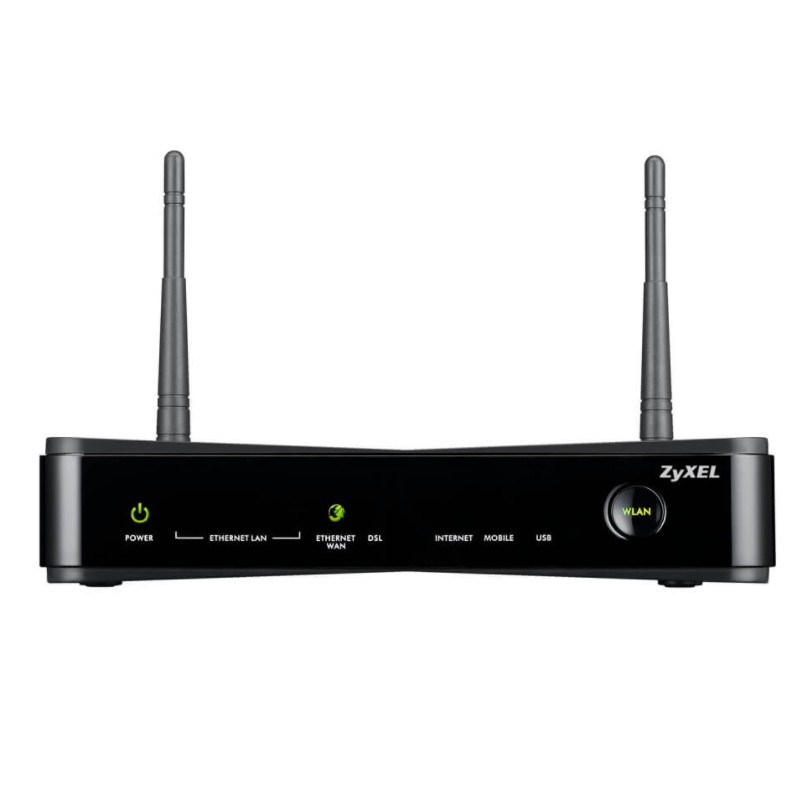

ZyXEL ZXL-SBG3300 Wireless N VDSL2/ADSL2+ Combo WAN Small Business Security Gateway Warranty Limited Lifetime (ARS* 1Y)

System Specifications

VDSL Compliance

– G.993.1 VDSL Annex A

– G.993.2 VDSL2 band plan Annex A, Annex B

– G.994.1 (G.hs) Handshake, G.997.1

– Supports VDSL profiles up to 17a

– Seamless Rate Adaption (SRA)

– INP: Up to 16 symbols

– G.INP, G.Vector

– PhyR configurable

ADSL Compliance

– G.992.1 (G.dmt), G.992.2 (G.lite) Annex A, B

– G.992.3 (ADSL2), G.992.5 (ADSL2+) Annex A, B

– Reach-Extended ADSL (RE ADSL)

– Seamless Rate Adaptation (SRA)

– PPP over ATM AAL5 (RFC2364)

– Supports VC-based and LLC-based multiplexing

– ATM traffic shaping (CBR, VBR-rt/nrt, UBR)

–  PhyR configurable

WLAN

– Two external 3 dbi detachable antennas

– IEEE 802.11 b/g/n compliance

– WMM for QoS configuration of each SSID

– Multi SSID: Up to 4

– Hidden SSID support

– Guest Wi-Fi access

– Web portal for terms of service

– WPA/WPA2-PSK with TKIP & AES

– WPA/WPA2-enterprise, supports EAP-MD5/ TLS/TTLS

– 32 MAC filter

– Wireless scheduling-

– High gain power option for specific regions

High Availability WAN

– Three WAN interface (VDSL, Ethernet and mobile USB) options

– User configurable multi-WAN load balancing with one WAN for failover/fallback

Bridge/Router

– Dynamic learning for up to 2014 MAC address

– PPPoE, PPPoA, IPoE, IPoA (RFC 1483)

– DHCP client/server/relay

– DHCP option 43/60/61/121/125

– DNS proxy, DDNS

– RIP I/RIP II supported

– UPnP

– Static/Policy route

– Adjustable MTU size (max 1518 byte)

– QoS classification route, queueing and scheduling

– Interface grouping

–  IPv6 support

VPN

– Simple wizard support (Express wizard)

– 20 concurrent IPSec VPN tunnels (Can set up to 35)

– IPSec, PPTP and L2TP over IPSec VPN

– Dead peer detection/replay detection

– IPSec HW engine

– Algorithm: AES (128/192/256)/3DES/DES

– Authentication: SHA-1/MD5

–  VPN failover/fallback

Firewall & Security

– Full cone NAT/symmetric NAT/restrict cone NAT, NAT ALGs

– 16000 NAT sessions supported

– Virtual server (port forwarding)

– Configurable DMZ

– PPTP/IPSec/L2TP pass through

– PAP/CHAP/MS-CHAP v1 and v2

– Stateful packet inspection

– DoS/DDoS protection

– Content filtering

– Access control: up to 256 ACL rules

– Report via Syslog, GUI, and email daemon

USB

– Two USB 1.1/2.0 ports

– FTP file sharing

– Supported file system: FAT16/32, EXT2/3

– Support mobile broadband dongle

– 3G budget control

Managem

– 2-tier log in

– Login privilege

– Dual image

– Text based configuration (XML based)

– Configurable access control for remote management

Supports TR-069, TR-098, TR-064 and TR-111

– SNMP v1, v2c

– Centralized log

– User management (user data base/profile)

Hardware Specifications

– LED: Power, LAN 1 – 4, Ethernet WAN, DSL, Internet, USB 1/2, WLAN

– One RJ-11 DSL port over POTS (Annex A)

– WLAN button

–  Power consumption: 18 Watt max.

Physical Specifications

– Item dimensions (WxDxH): 210 x 115 x 33 mm (8.27” x 6.06” x 1.57”)

– Item weight: 495 g (1.09 lb.)

– Packing dimensions (WxDxH): 270 x 255 x 65 mm (10.63” x 10.04” x 2.56”)- ·    Packing weight: 1,100 g (2.43 lb.)

Environmental Specifications

Operating Environment

– Temperature: 0°C to 40°C (32°F to 104°F)

– Humidity: 20% to 95% RH (Non-condensing)

Storage Environment

– Temperature: -30°C to 60°C (-22°F to 140°F)

–  Humidity: 10% to 95% (Non-condensing)
