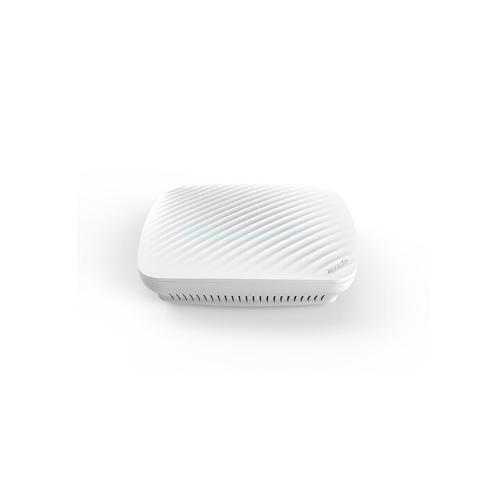

Tenda TND-I9 N300Mbps ceiling access point PoE Warranty 5 Year

TENDA i9

i9 300Mbps indoor ceiling access point 2.4GHz 300Mbps 1*FE Port SSID to VLAN tagging Maximum Transmit Power 100mw(23dbm) compliant with IEEE 802.3af AP/WDS/Universal Repeater

Mode : i9

Mounting options : Ceiling and Wall Mount

Dimension : 184*184*38

Frequency Band : 2.4GHz

Wireless Standards : 802.11b/g/n

PHY Data Rates : 1-300Mbps

Ethernet Ports : 1 10/100Base TX

DC Power Interface: 1 DC Power Interface

Reset Button : 1

LED : 1 Sys

Power Consumption : <8W

Power Supply : 802.3af & 12V1A DC

SSID Numbers : 4

WEP : 64/128

WPA2-PSK : AES/TKIP

WPA-PSK : AES/TKIP

WPA : Support

WPA2 : Support

Operating Mode : AP.Client+AP

VLAN Tagging for SSID : Support

Access Control : MAC address filtering

Adjustable Transmission Power : Support

AP Isolation : Support

User Access Limit : Supports wireless client number constraints

Client Access Restrictions : Support wireless client RSSI threshold Settings

WMM : Support

VLAN and SSID ; Bindings : Support

Timing Reboot : Support

Cycle Restart : Support

Equipment Restart : Support from Web UI or AP Controller

Firmware Upgrade : Support from Web UI or AP Controller

Equipment Management : Web Management

Restore Factory Settings : Support from Web UI or AP Controller

Backup Configuration : Support

Restore Configuration : Support

Transmit Power : 20±1.5dbm

Network Diagnoses : Support ping

Logs : System log view

Managed By Controller : M3

Default Settings : Default Login IP：192.168.0.254

Default User Name：admin；Default Password：admin

Temperature : Operating Temperature：-10℃ ~ 40℃；Storage Temperature：-30℃ ~ 70℃

Humidity : Operating Humidity：10%~90% non-condensing；

Storage Humidity：10%~90% non-condensing
