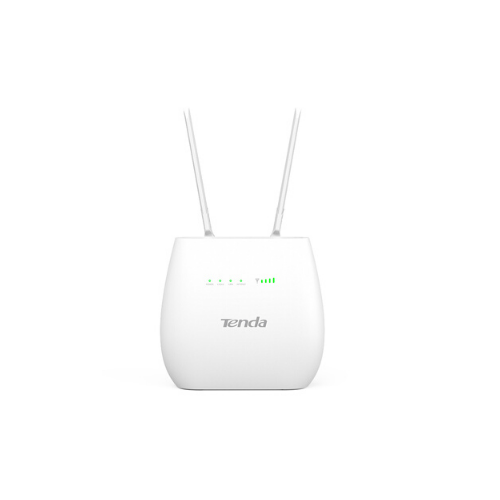

Tenda TND-4G680 300 Mbps Wireless 4G LTE Router Warranty 5 Year

Specification



Dimension

– 130mm*117mm*46mm(L*W*H)



Net Weight

– About 295 g



Color

– White



Link Speed Rate

– FDD-LTE DL/UL 150Mbps/50Mbps

– DC-HSPA+ DL/UL 43.2 Mbps/5.76 Mbps

– Megabit Wired speed rate



LED indicator

– Power on/off

– 2.4GHz WiFi Status

– LAN Port Status

– 4G/3G Signal strength Bars



Power Supply

– Input:110V-220V AC 50/60Hz

– DC:12V/1A



External Interface

– Two RJ45 Ports

– One RJ11 Port

– 2FF SIM slot



Button

– Power on/off

– Reset Hole



Standard&Protocol

– IEEE 802.11n?IEEE 802.11g?IEEE 802.11b



Antenna

– Two internal Wi-Fi antennas+Two external 3G/4G antennas



Wireless Link Rate

– 802.11 b/g/n 300Mbps



Frequency Range

– 2.4GHz



Basic Function

– Client Filter

– SSID,Broadcast

– Channel



Wireless Security

– WPA-PSK/WPA2-PSK

– WPA/WPA2

– WEP



Internet Connection Type

– FDD LTE/TDD LTE/WCDMA/GSM



Function

– Automatic APN matching according to USIM

– Date traffic management

– SMS Manager

– USSD Service

– MAC Filter

– DMZ

– DHCP

– 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions



Browser

– IE, Firefox, Google Chrome, Safari, Opera



Operation System

– Windows XP, Windows Vista, Windows 7, Windows 8, Mac OS X 10.5, 10.6, 10.7 and 10.8 with latest upgrades



Temperature

– Operating Temperature: 0℃~45℃

– Storage Temperature: -30?C~70?C



Humidity

– Operating Humidity: 10% ~ 90% RH Non-condensing

– Storage Humidity: 5% ~ 90% RH Non-condensing



Default Settings

– Login IP Address: 192.168.0.1

– Login User Name/Password: admin/admin

– SSID: Tenda_xxxx (where “xxxx” represents the last four characters of device MAC address)

– Password:See the label on back cover



Package Content

– 4G680V2.0 device

– RJ45 Cable

– RJ11 Cable

– Quick Install Guide

– Power supply 12V/1A(EU)
