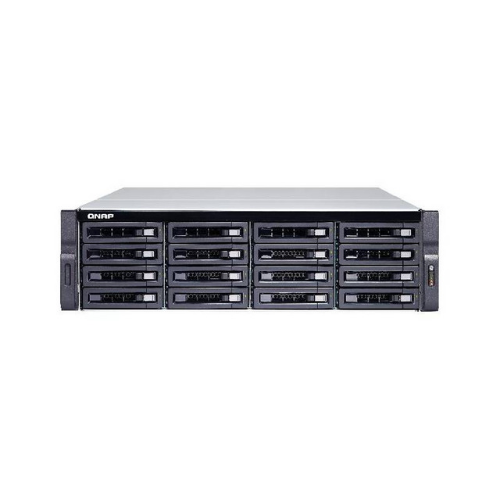

Qnap TS1673U-RP-64G AMD R-Series RX-421ND 2.1GHz Warranty 2 years

Categories: Home, SOHO & SMB, QNAP, Storage & NAS

Description
Reviews (0)

Product Info:

Specifications

- Mfr Part Number: TS-1673U-RP-64G-US
- Hardware:
  - CPU: AMD R-Series RX-421ND processor (2.1GHz Clock Speed, 3.4GHz Max Turbo, Quad Core)
  - Hardware Encryption Engine
  - System Memory: 64GB DDR4 (4x 16GB)
  - Maximum Memory: 64GB (4x 16GB)
  - Memory Slots: 4x UDIMM DDR4
  - Flash Memory: 512MB DOM
  - Drive Type: 16x 3.5″/2.5″ SATA 6Gb/s HDDs/SSDs
  - M.2 SSD Slot: 2x M.2 2280 SATA 6Gb/s SSDs
  - LAN Port: 2x 10 Gigabit SFP+ Ports (via a preinstalled PCIe network card), 4x Gigabit RJ45 LAN Ports
  - USB: 2x USB 3.0 Ports, 4x USB 2.0 Ports
  - PCIe Slot: 1x PCI-Express 3.0 x4 Slot (pre-installed with a dual-port 10GbE SFP+ LAN card)
  - LED Indicator: Status/Power, LAN, USB, Drive 1 – 16
  - Button: Power/Status, Reset
  - Maintenance Port: 1x 3.5mm console port
  - Operating System: QTS 4.3 (embedded Linux)
- Networking:
  - TCP/IP: Dual stack (IPv4 and IPv6)
  - Jumbo frame (failover, multi-IP settings, port trunking, and NIC teaming)
  - Service binding based on network interfaces
  - Squid web caching proxy
  - Proxy client
  - DHCP server and client
  - Protocols: CIFS/SMB, AFP v3.3, NFS v3, FTP, FTPS, SFTP, TFTP, HTTP(S), Telnet, SSH, iSCSI, SNMP, SMTP, and SMSC
  - UPnP and Bonjour Discovery
  - USB Wi-Fi adapter
- Security:
  - Network access protection with auto-blocking (SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP)
  - Host access control for shared folders (CIFS)
  - 140-2 validated AES 256-bit volume-based and shared folder data encryption (FIPS)
  - 256-bit external drive encryption (AES)
  - Importing of SSL certificates from Let’s Encrypt
  - Instant alerts through email, SMS, push service, audio, and LCD panel
  - 2-step verification
- Storage Management:
  - Storage space utilization monitoring
  - Flexible volumes and LUNs with thin provisioning and space reclaiming
  - Disk volume types: RAID 0,1,5,6,10, 5/6/10+spare, JBOD, single
  - Qtier Technology (automated storage tiering)
  - Snapshots
  - Volume and LUN snapshots
    - Snapshot Manager
    - Snapshot cloning
    - Snapshot Vault
    - Snapshot Replica
    - Unify Snapshot Directory
    - Support for previous Windows versions (SMB)
    - Snapshot Agent for Microsoft Windows and VMware vSphere
- File System:
  - Internal HDD: EXT4
  - External HDD: EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT
- Form Factor: 3U Rackmunt
- Fan: 4x 92 mm Fan (12V DC)
- Power Supply: 500W (x2), 100-240V AC, 50/60 Hz
- Dimensions (WxDxH): 18.94 x 21.10 x 5.12 inch / 481.0 x 536.0 x 130.0 mm
- Weight: 34.06 lbs / 15.45 kg
