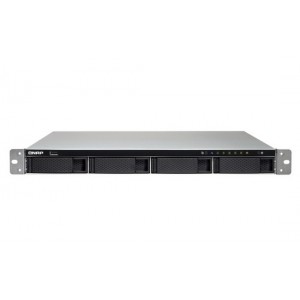

QNAP TS-463XU-RP-4G AMD G-Series GX-420MC quad-core 2.0 GHz processor Warranty 2 Years

1. Apple Mac OS 10.7 or later
2. Linux and UNIX
3. Microsoft Windows 7, 8, and 10
4. Microsoft Windows Server 2003, 2008 R2, 2012, 2012 R2 and 2016

1. Apple Safari 7 or later
2. Google Chrome
3. Microsoft Internet Explorer 10 or later
4. Mozilla Firefox

1. Internal hard drive (EXT4)
2. External hard drive (EXT3, EXT4, NTFS, FAT32, HFS+, and exFAT)

Note: To use exFat you must purchase an exFAT driver license from License Center.

1. TCP/IP: Dual stack (IPv4 and IPv6)
2. Jumbo frame (failover, multi-IP settings, port trunking/NIC teaming)
3. DHCP server and client
4. USB Wi-Fi adapter
   Note: This feature does not support ad hoc networks because of security considerations.

Show more…

1. Network access protection with auto-blocking (SSH, Telnet, HTTP(S), FTP, CIFS/SMB, and AFP)
2. Host access control for shared folders (CIFS/SMB)
3. 140-2 validated AES 256-bit volume-based and shared folder data encryption (FIPS)
4. 256-bit external drive encryption (AES)

Show more…

1. Storage space utilization monitoring
2. Flexible volumes and LUNs with thin provisioning and space reclaiming
3. Supported RAID types: RAID 0, 1, 5, 6, 10, JBOD, Single
4. RAID hot spare and global hot spare

Show more…

1. iSCSI targets with multiple LUNs per target
   Note: The maximum number of targets is 256.
2. LUN mapping and masking
3. Online LUN capacity expansion
4. SPC-3 persistent reservation

Show more…

1. Wake-on-LAN (WoL)
2. Standby mode for internal drives
3. Scheduled power on and off
4. Automatic power on after power recovery

Show more…

1. Multiple user creation
2. User data importing and exporting
3. User quota management
4. Local user access control (AFP, CIFS/SMB, FTP, and WebDAV)

Show more…

1. Microsoft Active Directory (AD) and domain controller support
2. LDAP server and client
3. Domain user login (AFP, CIFS/SMB, FTP, and File Station)

1. Free host name registration (DDNS)
2. Optional myQNAPcloud SSL certificates (DDNS)
3. Auto router configuration using UPnP
4. Web-based file manager with HTTPS 2048-bit encryption

Show more…

1. File syncing across multiple devices with SSL secure connection
2. Selective synchronization for specific folders or subfolders
3. Team folders as file center for better collaboration
   Note: The maximum number of sync tasks is 32.
4. File sharing using email links

Show more…

1. Monitoring of NAS system resources such as CPU, memory and network
2. Monitoring of NAS storage resources such as volumes, RAID, and disk activity
3. Monitoring of NAS application resource use
4. Creation of extra swap space when SSDs are installed

1. Reporting of issues to the QNAP support team, with automatic collection of system information
2. Remote connection between QNAP support engineers and NAS for issue resolution (with user permission)

1. Multi-window, multitasking system management
2. Smart toolbar and dashboard for system status display
3. Dynamic DNS (DDNS)
4. SNMP versions 2 and 3

Show more…

1. File sharing across Windows, Mac, and Linux/UNIX
2. Microsoft networking
3. Windows ACL
4. Advanced folder permissions (AFP, CIFS/SMB, and FTP)

Show more…

1. FTP over SSL/TLS (explicit)
2. FXP support

1. Cloud drive mounting for Google Drive, Dropbox, Microsoft OneDrive, Microsoft OneDrive for Business, HiDrive, Amazon Cloud Drive, Yandex Disk and Box
2. Remote shared folder mounting (CIFS/SMB, FTP, and WebDAV)
3. Document viewing using Office Online, Google Docs, and Chrome extension
4. Microsoft Office file editing using Google Docs, Sheets, and Slides

Show more…

1. Auto filing
2. Recipe function
3. Archiving through iSCSI, USB, DVD and remote NAS
4. Advanced settings

Show more…

1. Cloud storage backup to Amazon S3, Amazon Glacier, Microsoft Azure, Google Cloud Storage, Openstack Swift, WebDAV, and HKBN
2. Cloud storage syncing with Microsoft OneDrive, Google Drive, Dropbox, Amazon Drive, Yandex Disk, Box, hubiC, BackBlaze B2, Amazon S3, and HiDrive
3. RTRR server & client with bandwidth control
4. Rsync server with download bandwidth control

Show more…

1. Photo organization by thumbnail, list, timeline, or folder
2. Virtual and smart albums
3. Validity control for album sharing
4. Photo tagging with text, colors, and ratings

Show more…

1. Music playing and sharing through web browsers
2. Music streaming to multiple devices
3. Changing of album covers through Google search or by uploading photos
4. Internet radio (MP3)

Show more…

1. Video organization by thumbnail, list, timeline, or folder
2. Virtual and smart collections
3. Video tagging with text, colors, and ratings
4. Video link sharing through social media and email

Show more…

1. Virtual machine creation (Windows, Linux, Unix, and Android)
2. Virtual machine importing, exporting, cloning, snapshot capturing, backup, and restoration
3. HTML5-based shared remote console
4. Various networking modes using virtual switches

1. Support for LXC and Docker
2. Application downloading from the built-in Docker Hub Registry
3. One-click installation
4. Container importing and exporting

Show more…

1. Full-text search
2. Data distribution using a bar chart
3. Previews for photos, music, videos, PDFs, Gmail, and others
4. Advanced search operators and search scope

Show more…

1. Support for up to 128 camera channels
   Note: The maximum number of channels supported varies by NAS model, network configuration, and camera settings. For more information, visit https://www.qnap.com/go/qvr-nas-selector.
2. Camera management across different networks
3. Pre-allocation of dedicated recording spaces
4. Specifying trigger events and corresponding actions

Show more…

1. Instant switch between Live and Playback modes
2. Dynamic and adjustable layouts for camera views
3. Support for multiple platforms, including Windows, macOS, Ubuntu, QNAP HybridDesk Station, Android and iOS

1. Support for managing up to 128 QVR Pro servers (QVR Pro Gold license required)
2. Statistical graphics for visualizing event data
3. Log management for all added servers
4. Integration with QVR Pro Client for central monitoring across multiple servers

Show more…

1. Failover solution designed for QVR Pro to ensure server availability
2. Viewing task details during the failover period

1. Support for over 5,000 IP cameras
2. 4 free camera licenses
   Note: The application supports a maximum of 40 camera channels. You can purchase additional licenses on the QNAP website.
3. Instant playback for checking of recent events
4. Visual aid using e-map

Show more…

1. VPN server
   • Secure remote access with PPTP, L2TP/IPSec, and OpenVPN services
   • Support for a maximum of 300 clients
   • Support for domain users

Note: QVPN combines an integrated VPN Server, a VPN client, and L2TP/IPSec VPN services.

Show more…

1. Support for DLNA/UPnP TVs and players such as PlayStation 4 and Xbox One
2. Support for CUE indexing file for APE and FLAC

1. Monitoring of multiple NAS devices
2. Utilization history reports
3. Unified configuration management
4. Monitoring of NAS devices behind NAT routers with Connect to Q’center

Note: The application is available in the App Center and in virtual appliance marketplaces (VMware vSphere ESXi and Microsoft Hyper-V).

1. QNAP NAS location on the same local network
2. NAS shared folder mounting
3. Basic setting configuration (firmware, SMTP server, and network settings)
4. Storage Plug & Connect (Windows only)

Show more…

1. Official and community software add-ons
2. Automatic updates and notifications for new versions
3. Repository for imported third-party content
4. User-specified volume for storing applications

1. Video, photo and music streaming to Apple TV or Chromecast using the following:
   • NAS applications: File Station, Music Station, Photo Station, and Video Station
   • Mobile applications: Qfile, Qmusic, Qphoto, and Qvideo

Note: You must install the Media Streaming add-on from App Center.

1. PC-less downloads (BitTorrent, FlashGet, FTP/FTPS, HTTP/HTTPS, QQDL, and Thunder)
   Note:
   • The application supports a maximum of 500 tasks.
   • The maximum number of concurrent downloads is 90 (30 BT/PT, 30 HTTP, 30 FTP)
2. BitTorrent: Support for search, magnet links, private trackers, and proxy

Show more…

1. Multi-user text editing using the collaborative editor
2. Table creation using the spreadsheet editor
3. Online quick preview of multimedia attachments
4. Smart snapshot for version control

1. Usage of the NAS as a Linux-based computer
2. Support for Ubuntu 14.04, Ubuntu 16.04 and Ubuntu Kylin 16.04
3. Application downloading and usage from the Ubuntu Software Center
4. Remote desktop for remote monitoring and accessing of Ubuntu

Note: The application requires at least 4 GB of memory and installation of Container Station.

1. One-way scheduled sync of contacts from multiple Google accounts
2. Contact importing from CSV or vCard 3.0 files
3. Contact exporting to CSV or vCard 3.0 files
4. Duplicate contact searching and merging

Show more…

1. Daily task automation
2. Social media data archiving
3. File synchronization between the NAS and various cloud services
4. System event notifications on Line, Skype, Gmail, and mobile phones

Show more…

1. Designs and specifications are subject to change without notice.
2. Some features may vary by model.
3. QTS does not support DRM content and some IPv6 services.
4. Some data encryption features may be unavailable because of country-specific legislative restrictions.

1. HTTP/HTTPS Connections
2. Supports WebDAV Connection
3. Supports Virtual Host (Max: 32)
4. Importable SSL Certificate
