Hardware Specification :

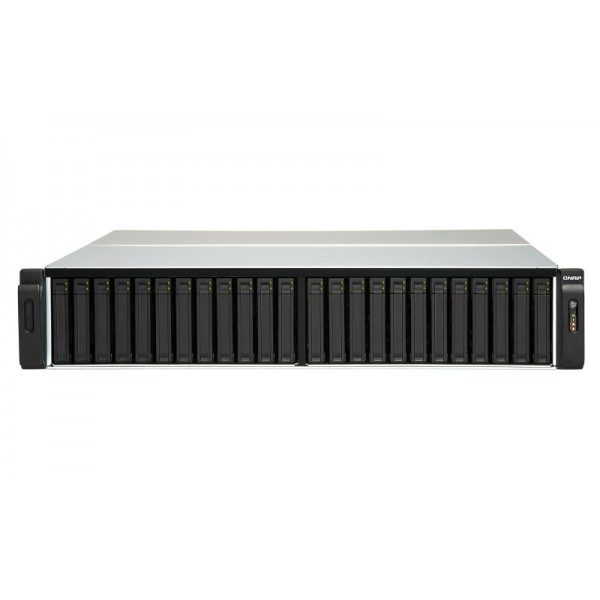

QNAP TES-3085U-D1548-32GR
Dual OS options 18-bay Rackmount NAS
| CPU | Intel Xeon Processor D-1548, 8-core 2.0 GHz |
| System Memory | 32 GB DDR4 ECC RAM ( 8 GB RDIMM x 4 ) / expandable up to 128 GB ( 4 x 32 GB) |
| Flash Memory | 4 GB DOM |
| Hard Disk Drive | Front: 2.5″x 24
Rear: 2.5″ SSD slot x 6 The system is shipped without Hard Disk |
| Drive Compatibility | Front: SAS 12Gb/s, SAS 6Gb/s, SATA 6Gb/s HDD and SSD Rear: SATA 6Gb/s SSD |
| LAN Port | 2 x SFP+ 10GbE ports 4 x Gigabit ports |
| PCIe Slot | 4 Slot 1: PCIe Gen.3 x8 Slot 2: PCIe Gen.2 x4 Slot 3: PCIe Gen.3 x4 Slot 4: PCIe Gen.3 x4 or PCIe Gen.3 x8 Note: Slot 4 provides the width of PCIe Gen.3 x8 when slot 3 is not in use |
| USB | 2 x USB 3.0 port (rear)
For QTS OS: The USB slots support pen drives and other USB-ready devices such as printers, UPS, etc. For QES OS: The USB slots are only reserved for development and debugging. |
| LED Indicators | 10 GbE, Status, LAN, Storage expansion port status |
| Buttons | Power button and reset button |
| Form Factor | 2U, Rackmount |
| Power Supply | Redundant Power Supply 450W x 2, 90-264VAC |
| Dimensions | 88.3 x 439 x 484.5 mm |
