- Camera
- Image Sensor1/2.8″ progressive scan CMOS
- Min. IlluminationColor: 0.01 Lux @(F1.2, AGC ON), 0.018Lux @ (F1.6, AGC ON)
- Shutter Speed1/3 s to 1/100, 000 s, support slow shutter
- Slow ShutterYes
- Wide Dynamic RangeDigital WDR
- Angle AdjustmentPan: 0° to 355°, tilt: 0° to 70°, rotation: 0° to 360°
- DNR3D DNR
- Lens
- Lens2.8 to 12 mm
- Auto-IrisNo
- ApertureF1.6
- Focus-V: Manual,-Z: Auto
- FOVHorizontal field of view: 98° to 34°,Vertical field of view: 52° to 19°,Diagonal field of view: 116° to 40°
- Lens MountΦ14
- Illuminator
- IR RangeUp to 30 m
- Wavelength850 nm
- Network
- Alarm TriggerMotion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login
- Network StorageSupport Micro SD/SDHC/SDXC card (128G ), local storage and ANR
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
- APIONVIF (PROFILE S, PROFILE G), ISAPI
- Simultaneous Live ViewUp to 6 channels
- User/HostUp to 32 users,3 levels: Administrator, Operator and User
- ClientHiLookVision PC Client, HiLookVision App
- Web BrowserIE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11
- Video
- Max. Resolution1920 × 1080
- Main Stream
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub Stream
50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)
60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
- Video CompressionMain stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG
- H.264 TypeBaseline Profile/Main Profile/High Profile
- H.265 TypeMain Profile
- Video Bit Rate32 Kbps to 8 Mbps
- Smart Feature-Set
- Region of Interest1 fixed region for main stream and sub-stream
- Image
- Image EnhancementBLC, 3D DNR
- Image SettingSaturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
- Day/Night SwitchAuto, scheduled
- Interface
- Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
- Video Output1Vp-p composite output (75 Ω/BNC) (Without -Z)
- General
- Firmware Version5.5.2
- General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark
- Startup and Operating Conditions-30 °C to 50 °C (-22 °F to 122 °F), humidity: 95% or less (non-condensing)
- Power Supply12 VDC ± 25%, 5.5 mm coaxial power plug,PoE (802.3af, class 3)
- MaterialMetal & Plastic
- DimensionsCamera:Ø 141 mm × 99.6 mm (Ø 5.6″ × 3.9″),With package: 140 mm × 140 mm × 154 mm (5.5″ × 5.5″ × 6.1″)
- Camera: Approx. 830 g (1.8 lb.),With package: Approx. 1070 g (2.4 lb.)
- Interface ProtectionIP67, IK10 ,TVS 2000V lightning protection, surge protection and voltage transient protection
- Compression Standard
- H.264+Main stream supports
- H.265+Main stream supports

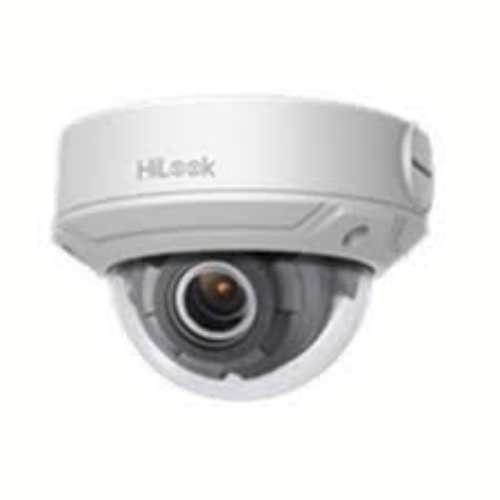

Be the first to review “Hilook IPC-D620H-Z 2 MP Varifocal Dome Network Camera By Vnix Group”
