- System parameters
- ProcessorHigh-Performance Embedded SOC Processor
- Operation systemEmbedded Linux Operation System
- Network parameters
- Ethernet10/100/1000 Mbps Self-Adaptive Ethernet
- Network protocolTCP/IP, RTSP
- Device interfaces
- Network interface1 RJ-45 10/100/1000 Mbps Self-Adaptive Ethernet Interface
- I/O input8
- I/O output4
- RS-4851 RS-485 Half-Duplex Port
- Wiegand1 Wiegand Port for Accessing Wiegand IC Card Reader
- USB1 USB 2.0, Supporting U-Disk
- General
- Power supply12 VDC
- Power consumption≤15 W
- Working temperature-40° C to +60° C (-40° F to 140° F)
- Working humidity10% to 90%
- IP protection levelIP65
- CertificationFCC, IC, CE, C-TICK, ROHS, REACH, WEEE
- Dimensions(L × W × H)418 mm × 145 mm × 61 mm (16.5″ × 5.7″ × 2.4″)
- MaterialPlastic

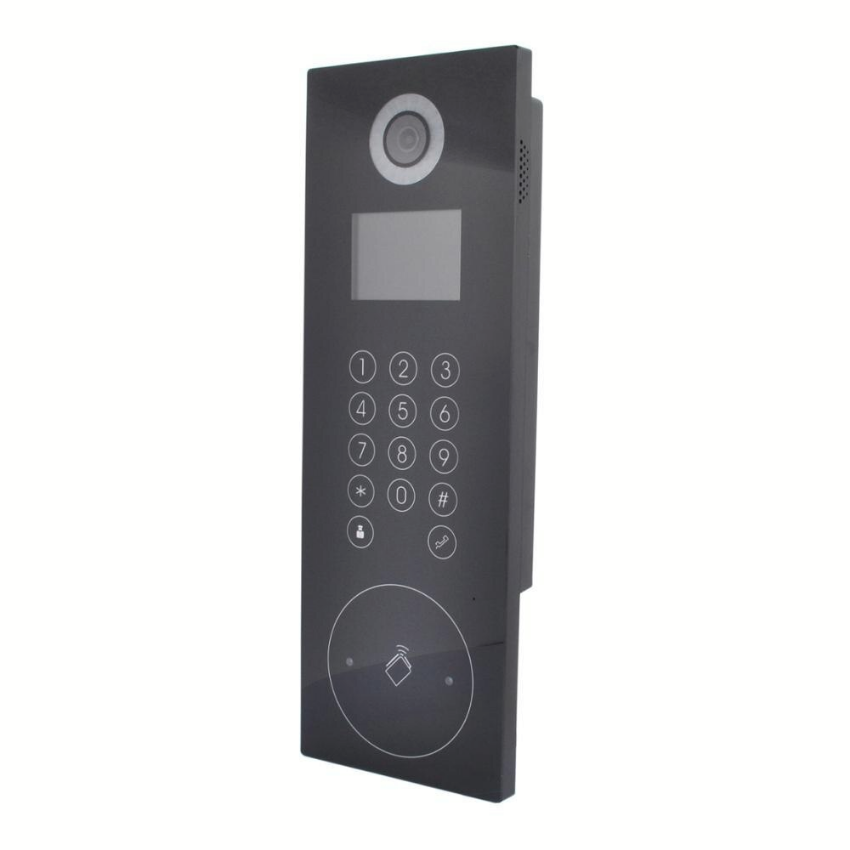

Be the first to review “Hikvision DS-KD8102-V KD8 Series Pro Acrylic Door Station”
