- System
- MCBF＞6 million times
- MotorServo motor
- Interface
- Network interface1
- RS-2324
- Lock output2
- General
- Throughput
30 to 60 persons per minute
The actual throughput is affected by the person passing rate and passing method.
- Power supply method100 to 240 VAC; 50 to 60 Hz
- IR light detectors12 pairs
- Lane width550 mm to 1100 mm (21.65″ to 43.31″)
- Working temperature-25 °C to 70 °C (-13 °F to 158 °F)
- Barrier materialStainless steel pipe; Acrylic glass
- Working humidity10% to 95% (No Condensing)
- Dimensions
Without Packaging: 1500 mm × 200 mm × 990 mm (59.06” × 7.87” × 38.98”)
With Packaging: 1610 mm × 300 mm × 1100 mm (63.39” × 11.81” × 43.31”)
- Pedestal materialSUS304 stainless steel
- Configuration
- Module selectionYES
- Authentication modeCard;Face;Fingerprint;QR code
- Card typeM1;EM
- Wall distance130mm
- Lane width600;650;750;900;1100
- Recommended width650
- Pedestal width200mm
- Pedestal length1500mm
- Barrier materialAcrylic glass;Stainless steel pipe
- BaseYES
- Base modelDS-K3B601-BASE

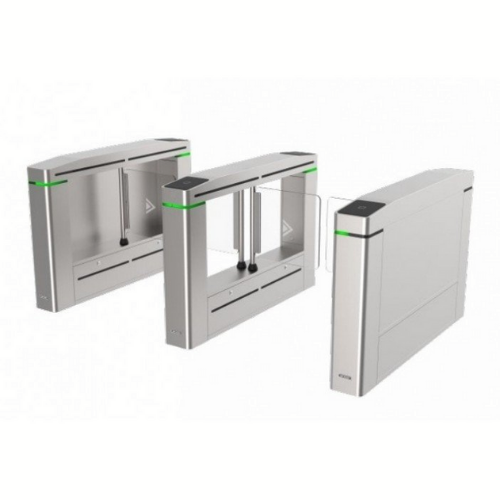

Be the first to review “Hikvision DS-K3B601 Pro Series Swing Barrier By Vnix Group”
