| Camera | ||
|---|---|---|
| Strobe Light Alarm: | Yes | |
| Slow Shutter: | Max. 16 times | |
| WDR (Wide Dynamic Range): | ≥130 dB | |
| Angle Adjustment: | Pan: 0°to 360°, Tilt: 0°to 180°, Rotate: 0°to 360° | |
| Image Sensor: | 2.0 megapixel progressive scan CMOS | |
| Signal System: | PAL/NTSC | |
| Min. Illumination: | Color: 0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR | |
| Shutter Time: | PAL: 1/25 s to 1/50, 000 s NTSC: 1/30 s to 1/50, 000 s |
|
| Lens: | 2.8 mm, 3.6 mm fixed focal lens | |
| Lens Mount: | M12 | |
| Day& Night: | IR cut filter | |
| Horizontal Resolution: | 1920 (H) × 1080 (V) | |
| Video Frame Rate: | TVI: 1080p@25fps/30fps | |
| Lens | ||
|---|---|---|
| Horizontal Field of View: | 2.8 mm, horizontal FOV: 103.5°, vertical FOV: 55°, diagonal FOV: 119° 3.6 mm, horizontal FOV: 79.1°, vertical FOV: 43°, diagonal FOV: 92° |
|
| Menu | ||
|---|---|---|
| Image Mode: | STD/HIGH-SAT | |
| Noise Reduction: | 3D DNR/2D DNR | |
| Automatic Exposure: | WDR/BLC/HLC/Global | |
| White Light: | AUTO/OFF | |
| D/N Mode: | Auto/Color/BW (Black and White) | |
| Private Mask: | ON/OFF, 4 programmable privacy masks | |
| Motion Detection: | 4 programmable motion areas | |
| BLC: | WDR/BLC/HLC/Global | |
| AGC: | Yes | |
| Language: | English | |
| Function: | Brightness, Sharpness, Mirror, Smart IR | |
| White Balance: | Auto/Manual | |
| Interface | ||
|---|---|---|
| Video Out: | 1 HD analog output | |
| General | ||
|---|---|---|
| White Light: | Up to 20 m | |
| PIR Range: | Angle: 110°, Range:11 m | |
| Material: | Front cover: Metal Main body: Plastic |
|
| Ingress Protection: | IP67 | |
| Operating Conditions: | -40 °C – 60 °C (-40 °F – 140 °F) Humidity 90% or less (non-condensing) |
|
| Power Supply: | 12 VDC ±25% *You are recommended to use one power adapter to supply the power for one camera. | |
| Power Consumption: | Max. 4.5 W | |
| IR Range: | Up to 20m | |
| Communication : | HIKVISION-C | |
| Dimension: | 88.6 mm × 81.3 mm × 224.7 mm (3.49″ × 3.20″ × 8.85″ ) | |
| Weight: | Approx. 443 g (0.98 lb.) | |

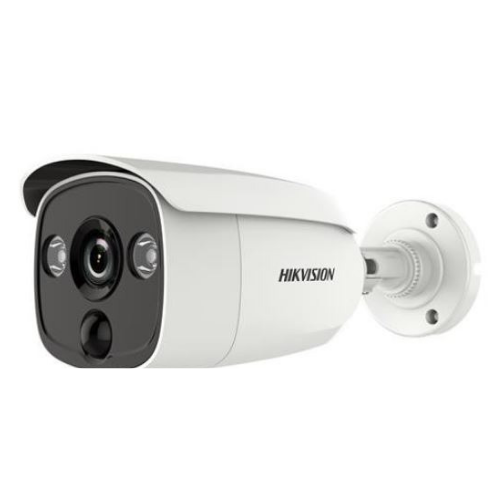

Be the first to review “Hikvision DS-2CE12D8T-PIRL 2 MP Ultra-Low Light PIR Bullet Camera Warranty 3 years”
