Specifications

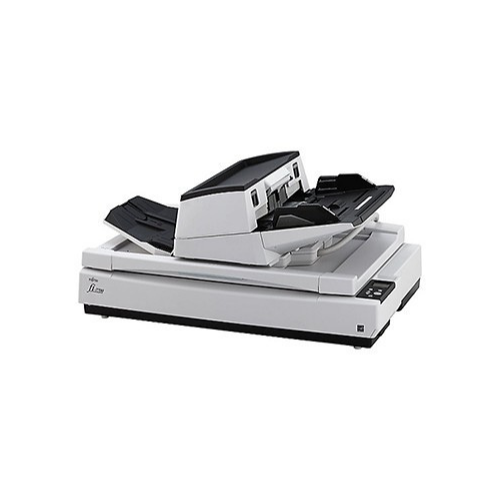

| Description | fi-7700 | ||
|---|---|---|---|
| Functional Specifications | |||
| Image Sensor Type | Color CCD (Charge-coupled device) x 3 (front x 1, back x 1, Flatbed x 1) | ||
| Light Source | White LED Array x 6 (front x 2, back x 2, Flatbed x 2) | ||
| Multifeed Detection | Ultrasonic multi-feed detection sensor, Paper detection sensor | ||
| Optical Resolution | 600 dpi | ||
| Output resolution(1) | Color (24-bit) | 50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)(2) |
|
| Grayscale (8-bit) | |||
| Monochrome | |||
| Output format | Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit | ||
| Internal Video Processing | 4,096 levels (12-bit) | ||
| Image Processing Functions | Multi image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, De-Screen,Emphasis, Halftone, Dropout color (None / Red / Green / Blue / White / Saturation / Custom), sRGB output, Hole punch removal, Index tab cropping, Split image, De-Skew, Edge correction, Vertical streaks reduction, Cropping, Dither, Static threshold, Divide Long Page | ||
| Scanning Speed(3) (A4 Landscape) |
ADF | Color(4) Grayscale(4) Monochrome(5) |
Simplex: 100 ppm, Duplex: 200 ipm (200 dpi / 300 dpi) |
| Flatbed | Color(4) Grayscale(4) Monochrome(5) |
0.6 Seconds (200 dpi / 300 dpi) | |
| Scanning Speed(3) (A4 Portrait) |
ADF | Color(4) Grayscale(4) Monochrome(5) |
Simplex: 80 ppm, Duplex: 160 ipm (200 dpi / 300 dpi) |
| Flatbed | Color(4) Grayscale(4) Monochrome(5) |
0.9 Seconds (200 dpi / 300 dpi) | |
| Paper chute capacity (A4 Landscape)(6) | 300 Sheets (A4: 80 g/m² or 20 lb.) | ||
| Expected Daily Volume | 44,000 Sheets | ||
| Background Colors | ADF | White / Black (switching with command available) | |
| Flatbed | White (switching to optional black available) | ||
| Document Size | Minimum | 50.8 mm x 69 mm (2 in. x 2.72 in.) | |
| Maximum | 304.8 mm x 431.8 mm (12 in. x 17 in.) | ||
| Long page scanning(7) (Maximum) |
304.8 mm x 5,588 mm (12 in. x 220 in. ) | ||
| Flatbed (Maximum) |
304.8 mm x 457.2 mm (12 in. x 18 in. ) | ||
| Paper Weight (Thickness)(8) |
Paper | 20 to 413 g/m² (5.3 to 110 lb.), A8 size: 128 to 209 g/m² (34 to 56 lb) | |
| Plastic Card | Up to 1.4 mm (9) | ||
| Interface | USB 3.1 Gen1 / USB 3.0 / USB 2.0 / USB 1.1 | ||
| Minimum PC Specification | CPU: Intel® Core i5 2400S @ 2.5Ghz Memory: 4.0GB OS:Windows® 7 SP1 (32-bit) Software: PaperStream Capture |
||
| Physical Specifications | |||
| Power Requirements | 100 to 240 VAC ± 10 % | ||
| Power Consumption | Operating: 64 W or less, Sleep mode: 1.7 W or less, Auto Standby(OFF) mode: Less than 0.35 W | ||
| Dimensions (WxDxH)(10) | 706 mm x 500 mm x 345 mm (27.8 in. x 19.7 in. x 13.6 in.) | ||
| Weight | 35 kg (77.2 lb.) or less | ||
| Environmental Compatibility | ENERGY STAR® / RoHS | ||
| Operating Environment | Temperature | 5 °C to 35 °C (41 °F to 95 °F ) | |
| Relative Humidity | 20 % – 80 % (non-condensing) | ||
| Included Items | ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM | ||
| Included Software / Drivers | PaperStream IP driver (TWAIN/TWAIN x64/ISIS), WIA Driver(11), PaperStream Capture, ScanSnap Manager for fi Series(12), Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap™(12), Scanner Central Admin, 2D Barcode for PaperStream(12) | ||
| Options | Black Document Pad (fi-575BK), PaperStream Capture Pro | ||
| Supported Operating Systems | Windows® 10 (32-bit/64-bit), Windows® 8.1 (32-bit/64-bit), Windows® 7 (32-bit/64-bit), Windows Server® 2019 (64-bit), Windows Server® 2016 (64-bit), Windows Server® 2012 R2 (64-bit), Windows Server® 2012 (64-bit), Windows Server® 2008 R2 (64-bit), Windows Server® 2008 (32-bit/64-bit) | ||
- Selectable maximum density may vary depending on the length of scanned document.
- Some limitations may apply to the size of documents that can be scanned, depending on system environment, when scanning at high resolution (over 600 dpi).
- Actual scanning speeds are affected by data transmission and software processing times.
- Indicated speeds are from using JPEG compression.
- Indicated speeds are from using TIFF G4 compression.
- Maximum capacity depends on paper weight and may vary.
- It becomes the following specifications with resolution.
200 dpi or less : 220 in. (5,588 mm)
300 dpi or less : 215 in. (5,461 mm)
400 dpi or less : 160 in. (4,064 mm)
600 dpi or less : 106.3 in. (2,700 mm) - The paper weight only applies to using the ADF.
- Capable of scanning up to 3 cards at a time. (Note: only one embossed card can be scanned at a time.)
- Excluding the ADF paper chute and Stacker.
- Functions equivalent to those offered by PaperStream IP may not be available with the WIA Driver.
- Software can be downloaded from the website designated in the Setup DVD-ROM.
