| Standard: | TCP/IP |
| Sensor: | 1/3 ” Progressive Scan CMOS |
| Matrix size: | 4.0 Mpx |
| Scanning system: | Progressive |
| Resolution: | 2688 x 1520 – 4.0 Mpx |
| Lens: | 2.8 mm |
| View angle: | 106 ° |
| Range of IR illumination: | 30 m |
| Memory card slot: | Micro SD memory cards up to 128GB support (possible local recording) |
| Image compression method: | H.265 |
| Alarm inputs / outputs: |  |
| Audio: | |
| Bitrate: | 32 … 10240 kbps – H.264 |
| Network interface: | 10/100 Base-T (RJ-45), Wi-Fi IEEE 802.11 b/g/n |
| Network protocols: | TCP, DHCP |
| Main stream frame rate: | 20 fps @ 4.0 Mpx |
| WEB Server: | |
| ONVIF: | |
| Main features: |
|
| Mobile phones support: | Access by a cloud (P2P) |
| Default admin user / password: | admin / – The administrator password should be set at the first start |
| Default IP address: | DHCP |
| Web browser access ports: | |
| PC client access ports: | |
| Mobile client access ports: | |
| Port ONVIF: | |
| Power supply: | 12 V DC / 540 mA |
| Power consumption: | < 6.5 W |
| Housing: | Dome – Metal |
| Color: | White |
| Vandal-proof: | IK10 |
| “Index of Protection”: | IP67 |
| Operation temp: | -10 °C … 50 °C |
| Weight: | 0.4 kg |
| Dimensions: | Ø 110 x 81 mm |
| Supported languages: | |
| Manufacturer / Brand: | DAHUA |

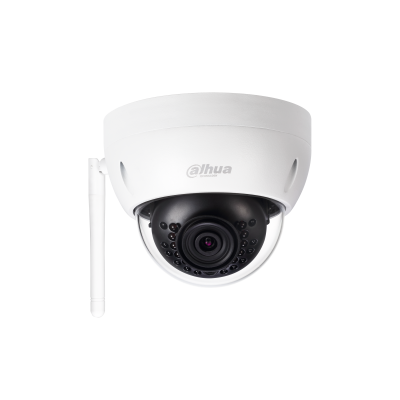

Dahua IPC-HDBW1435E-W 4MP IR Mini-Dome Wi-Fi Network Camera Warranty 3 years
