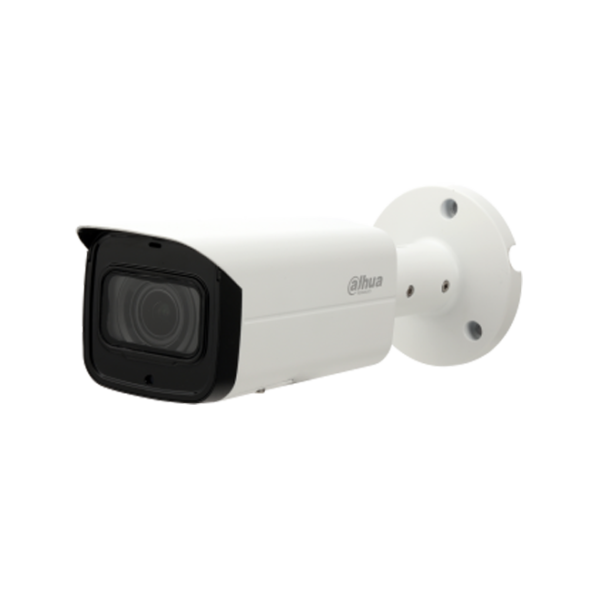

Dahua DH-IPC-HFW4631TP-ASE 6MP progressive scan STARVIS CMOS Warranty 3 years

Categories: CCTV/Security/Accessories, Dahua, IP, IP Camera

Description
Reviews (0)

Standard:	TCP/IP
Sensor:	1/2.9 ” STARVIS™ CMOS
Matrix size:	6.3 Mpx
Resolution:	3072 x 2048 – 6.3 Mpx , 3072 x 1728 – 5.3 Mpx , 2592 x 1944 – 5.0 Mpx , 2688 x 1520 – 4.0 Mpx , 2560 x 1440 – 3.7 Mpx , 2304 x 1296 – 3 Mpx , 1920 x 1080 – 1080p , 1280 x 1024 – 1.4 Mpx , 1280 x 960 – 1.3 Mpx , 1280 x 720 – 720p
Operation modes:	Main and sub streams may be in any configuration Firmware 2.460.0000.15.R, build: 2017-09-07 Main stream : 3072 x 2048, 3072 x 1728, 2592 x 1944, 2688 x 1520, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720 Sub stream 1 : 704 x 576, 352 x 288 Sub stream 2 : 1920 x 1080, 1280 x 720, 704 x 576
Scanning system:	Progressive
Lens:	6 mm
View angle:	48 °
Range of IR illumination:	60 m
S/N ratio:	> 50 dB
RS-485 interface:
Memory card slot:	Micro SD memory cards up to 128GB support (possible local recording)
Image compression method:	H.265 / H.265+ / H.264 / H.264+ / MJPEG
Alarm inputs / outputs:	1 / 1
Audio:	External microphone input Audio output Bi-directional audio streaming support
Bitrate:	24 kb/s … 10240 kb/s – H.264 14 kb/s … 9984 kb/s – H.265
Main stream frame rate:	20 fps @ 6.3 Mpx 25 fps @ 5.3 Mpx
Network interface:	10/100 Base-T (RJ-45)
Network protocols:	HTTP, HTTPS, TCP, IPv4/IPv6, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPoE, QoS, UPnP, NTP, Bonjour, IEEE 802.1x, Multicast, ICMP, IGMP, SNMP
WEB Server:	Built-in
Max. number of on-line users:	20
ONVIF:	16.12
Main features:	WDR – 120 dB – Wide Dynamic Range 3D-DNR – Digital Noise Reduction ROI – improve the quality of selected parts of image ICR – Movable InfraRed filter BLC/HLC – Back Light / High Light Compensation Possibility to change the resolution, quality and bit rate Motion Detection Configurable Privacy Zones Mirror – Mirror image IVS analysis : crossing the line (tripwire), scene changing, intrusion, abandoned/missing object, face detection
Power supply:	PoE (802.3af), ePoE, 12 V DC / 540 mA
Power consumption:	≤ 6.5 W
Mobile phones support:	Port no.: 37777 or access by a cloud (P2P) Android: Free application gDMSS Plus, Android: Free application IMOU iOS (iPhone): Free application iDMSS Plus, iOS (iPhone): Free application IMOU
Default IP address:	192.168.1.108
Default admin user / password:	admin / admin
Web browser access ports:	80, 37777
PC client access ports:	37777
Mobile client access ports:	37777
Port ONVIF:	80
RTSP URL:	rtsp://admin:admin@192.168.1.108:554/cam/realmonitor?channel=1&subtype=0 – Main stream rtsp://admin:admin@192.168.1.108:554/cam/realmonitor?channel=1&subtype=1 – Sub stream
Housing:	Compact – Metal / Plastic
Color:	White / Black
“Index of Protection”:	IP67
Vandal-proof:	IK10
Operation temp:	-30 °C … 60 °C
Weight:	0.87 kg
Dimensions:	244 x 79 x 76 mm
Supported languages:	English, Polish
Manufacturer / Brand:	DAHUA
Guarantee:	3 years
