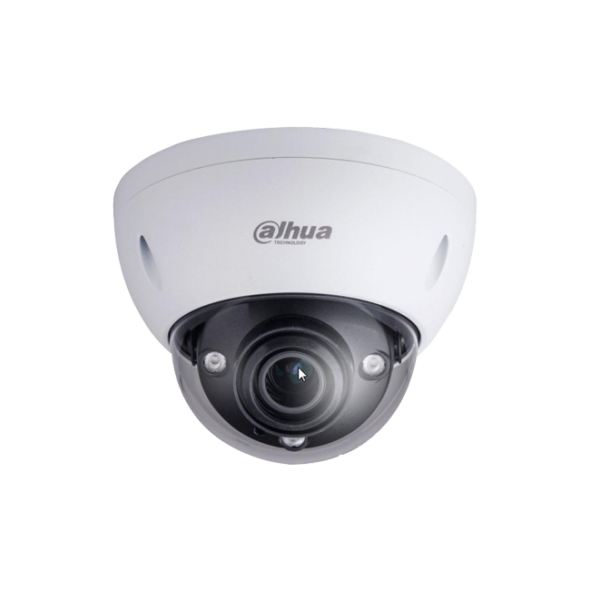

Dahua DH-IPC-HDBW5221EP-Z 2MP progressive scan CMOS Warranty 3 years

Categories: CCTV/Security/Accessories, Dahua, IP, IP Camera

Description
Reviews (0)

Standard:	TCP/IP
Sensor:	1/2.7 ” Progressive Scan CMOS
Matrix size:	2.0 Mpx
Resolution:	1920 x 1080 – 1080p 1280 x 1024 – 1.4 Mpx 1280 x 960 – 1.3 Mpx 1280 x 720 – 720p 704 x 576 – D1
Operation modes:	Main and sub streams may be in any configuration Firmware 2.400.0000.8.R, build : 2015-05-15 Main stream : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 704 x 576 Sub stream : 704 x 576, 352 x 288
Lens:	2.7 … 12 mm – Motozoom
View angle:	99 ° … 34 ° (manufacturer data) 88 ° … 34 ° (our tests result)
Range of IR illumination:	50 m
S/N ratio:	> 50 dB
RS-485 interface:
Memory card slot:	Micro SD memory cards up to 128GB support (possible local recording)
Image compression method:	H.264 / MJPEG
Alarm inputs / outputs:	1 / 1
Audio:	External microphone input Audio output Bi-directional audio streaming support Audio detection
Bitrate:	384 … 10240 kbps @ H.264
Network interface:	10/100 Base-T (RJ-45)
Network protocols:	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
WEB Server:	Built-in, Web Viewer
Max. number of on-line users:	20
ONVIF:	2.42
Main stream frame rate:	25 fps @ 1080p
Mobile phones support:	Port 37777 Android: Free application gDMSS Plus iOS (iPhone): Free application iDMSS Plus There are also paid versions of mobile applications: gDMSS Plus, iDMSS Plus, wDMSS plus
Main features:	Motozoom lens – Controlling from browser, NVR or software ICR – Movable InfraRed filter 3D-DNR – Digital Noise Reduction WDR – Wide Dynamic Range BLC – configurable Back Light Compensation HLC – High Light Compensation (spot) Audio detection Day/Night mode (color/b&w/auto) Configurable Privacy Zones IVS analysis : crossing the line (tripwire), intrusion, scene changing, abandoned/missing object
Power supply:	PoE (802.3af) 12 V DC / 810 mA
Housing:	Dome – Metal
Color:	White
Vandal-proof:
Operation temp:	-30 °C … 60 °C
“Index of Protection”:	IP66
Weight:	0.848 kg
Dimensions:	Ø 159 x 118 mm
Supported languages:	English, Polish
Manufacturer / Brand:	DAHUA
Guarantee:	3 years
