GENERAL
Phase
| Single Phase |
Capacity (VA)
| 600 |
Capacity (Watts)
| 420 |
INPUT
Generator Compatibility
| Yes |
Nominal Input Voltage ( Vac )
| 220 |
| 230 |
Input Voltage Range ( Vac )
| 170 ~ 270 Vac |
Input Frequency ( Hz )
| 50 ± 5 |
| 60 ± 5 |
Input Frequency Detection
| Auto-sensing |
Input Connector Type
| IEC C14 |
DC Input Voltage ( Vdc )
| 12 |
OUTPUT
Output Waveform
| 0%-40% Load, Pure Sine Wave |
| 40%-100% Load, Simulated Sine Wave |
Output Voltage(s) ( Vac )
| 220 ± 5% |
| 230 ± 5% |
Output Frequency ( Hz )
| 50 ± 1% |
| 60 ± 1% |
Automatic Voltage Regulation (AVR)
| Single Boost, Single Buck |
Overload Protection (On Utility)
| Fuse |
Overload Protection (On Battery)
| Internal Current Limiting |
Outlet(s) – Total
| 1 |
Outlet Type
| IN/ZA x 1 |
Typical Transfer Time ( ms )
| 10 |
SURGE PROTECTION & FILTERING
Lightning / Surge Protection
| Yes |
MANAGEMENT & COMMUNICATIONS
LCD Panel
| Yes |
LCD Information Display
| Operation Type , Power Status , Battery Status , Load Status , Fault & Warning , Other Information |
LCD Setting & Control
| Mode Setting , Alarm Setting , Input & Output , Battery Setting , Fault & Warning |
LED Indicators
| Power On |
Audible Alarms
| Battery Mode , Low Battery , Overload , Overcharge , Overheat |
PHYSICAL
Form Factor
| Tower |
Enclosure Construction
| Metal |
Color
| Yellow |
PHYSICAL SIZE
Dimensions (WxHxD) (mm.)
| 240 x 90 x 162 |
Weight (kg.)
| 4.32 |
SHIPPING DIMENSIONS
Dimensions (WxHxD) (mm.)
| 330 x 176 x 230 |
Weight (kg.)
| 5.22 |
ENVIRONMENTAL
Operating Temperature (°C)
| 0 ~ 40 |
Operating Relative Humidity (Non-condensing) ( % )
| 0 ~ 95 |
Operating Elevation ( feet/meters )
| 0-10,000 feet (0-3,000 meters) |
Storage Temperature (°C)
| -15 ~ 45 |
Storage Relative Humidity (Non-condensing) ( % )
| 0 ~ 95 |
Storage Elevation ( feet/meters )
| 0-50,000 feet (0-15,000 meters) |
CERTIFICATIONS
Certifications
| CE |
RoHS
| Yes |
EXTERNAL BATTERY (OPTIONAL)
Battery Type
| Sealed Lead-acid |
Battery Voltage ( Vdc )
| 12 |

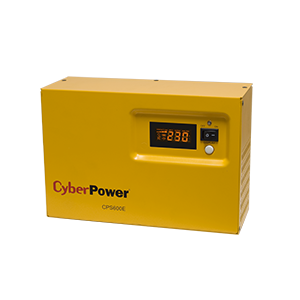

Be the first to review “Cyberpower CPS600E-AS 600VA/420WATT Warranty 2 Years”
