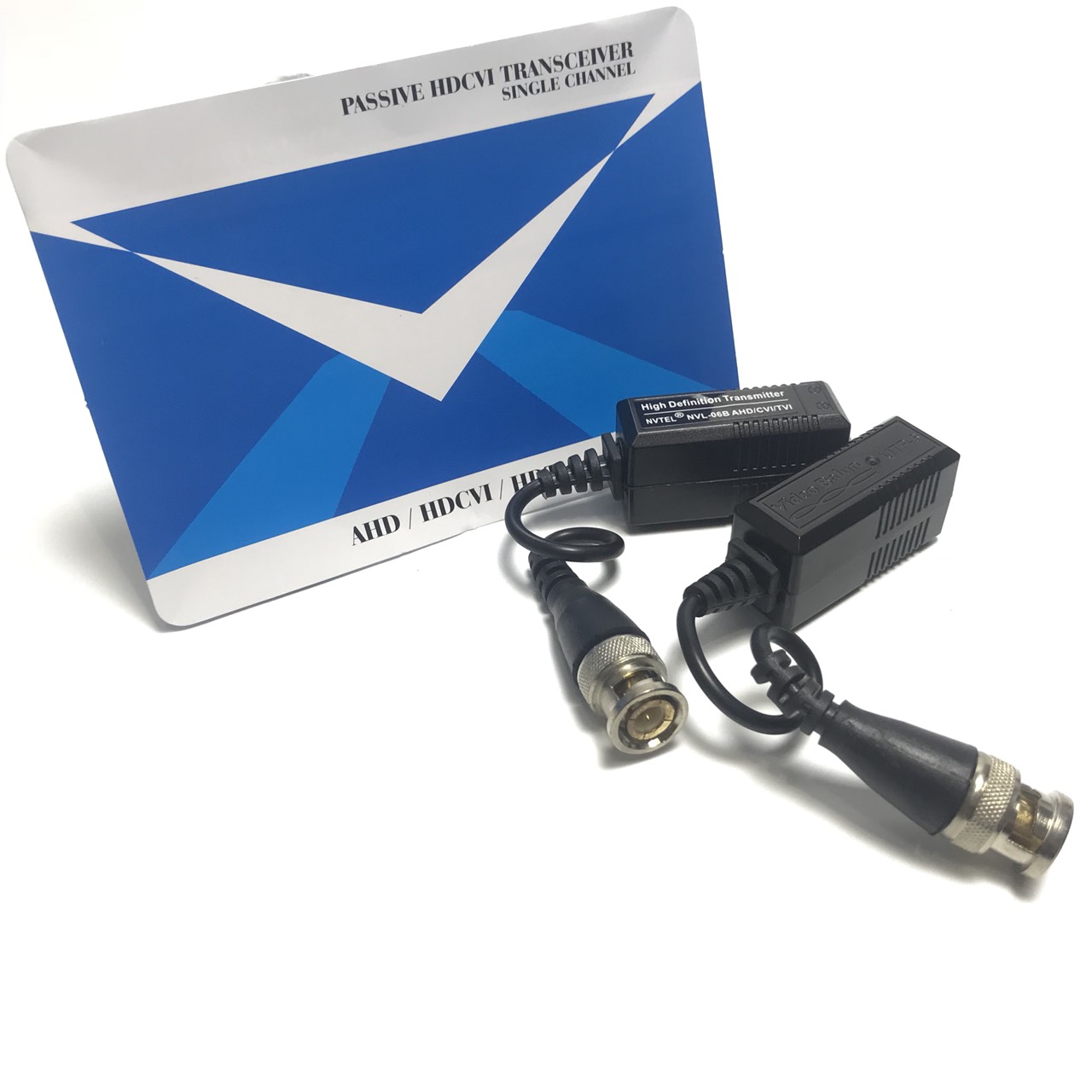

Product Description
| Features | ||
| No power required | ||
| HDCVI video format compatible | ||
| Real time transmission | ||
| Exceptional interference rejection | ||
| Wave Filter Design,Anti-Static Design,Lightning Protection | ||
| Long-distance transmission and high-quality image | ||
| Compact size and easy installation | ||
| Cost-effective | ||
| ITEMS | SPECIFICATION | |
| HDCVI signal | 1 channel | |
| Transmission cable | UTP CAT5/5E/6 | |
| Transmission Distance | 720P:400m | |
| 1080P:200m | ||
| Video | ||
| Compatible Format | HDCVI | |
| Resolution | 720P/1080P | |
| Operating Frequency | DC to 6MHz | |
| Anti-interference | Less than 60dB | |
| Attenuation | 1.5dB typ Max | |
| Impedance | Male BNC:75Ω | |
| UTP cable:100Ω | ||
| External power required | No | |
| Protection | ||
| ESD | 1a contact discharge electricity level 3 | |
| 1b air discharge electricity level 3 | ||
| Per:IEC61000-4-2 | ||
| Renewable solid state surge protection | ||
| Video Input | 2KV(common mode),per:IEC1000-4-5 | |
| Video Output | 2KV(different-mode),4KV(common mode),per:IEC1000-4-5 | |
| Connector | ||
| Video input/output | Male BNC / Push terminal | |
| Mechanical | ||
| Housing | ABS engineering plastic | |
| Body Color | Black | |
| Dimensions | 53*20*17mm(connector excluded) | |
| Net weight | 25g/pair | |
| MTBF | More than 10000H | |
| Environment | ||
| Operating Temperature | -10℃-55℃ | |
| Relative Humidity | 0-95%(non-condensing) | |
| Storage Temperature | -20℃-70℃ | |
